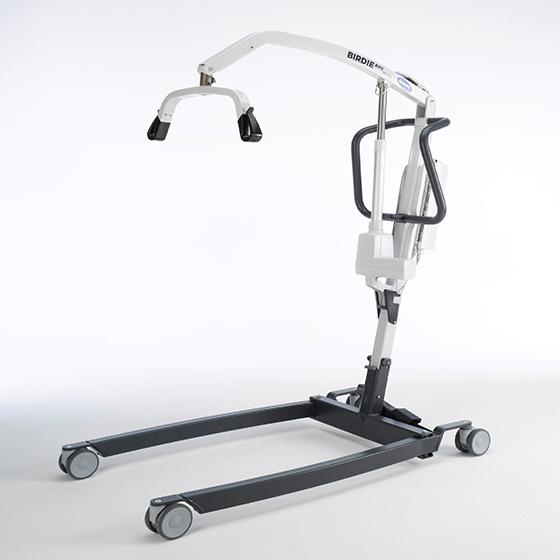

The Invacare Birdie Evo has been designed to offer a high feature-set of options that have been blended with new technologies to provide maximum comfort and security when lifting or transferring a patient to or from a bed, chair or even the floor.
Based on the renowned Birdie, the new range has been customer insight led, encompassing everything that was valued on the Birdie whilst bringing in new features to further enhance the client and carer experience.
Impressive Lifting Range
The Birdie encompasses an ergonomic lift that allows the client to be easily rotated 360 degrees making positioning much easier for the carer and reducing anxiety for the client.
Maximised Space
The high boom ensures there is space for the client, even when the hoist is in its highest position, and the optimised space in front of the actuator reduces the risk of injury to the clients knees.
Easy To Handle, Transport And Store
The new Birdie Evo family can be easily folded and unfold without the use of tools. They take up minimul space when stored and are easy to push and transport. If required the mast can be easily removed from the base ( with no tools required)
The Birdie has a low weight of 31kg making it even easier to transport and store.
Features
Hook Design
Securely attaches slings with ease , thanks to a new intuitive hook design.
Special ergonomic shapeto attach slings from above or from below.
Flexible and out pointing lip enables easy sling detachment.
Ergonomic Push Bar
Ergonomic design of the push bar makes handling and manoeuvring easier.
Increased depth of handles allows for comfortable arm extension during transportation.
Designed with carers in mind.
Status Indicator On Control Box
Battery Gauge indicator included as standard on all models which delivers peace of mind regarding the remaining lifts achievable.
Battery can be easily detached for efficient off board charging.

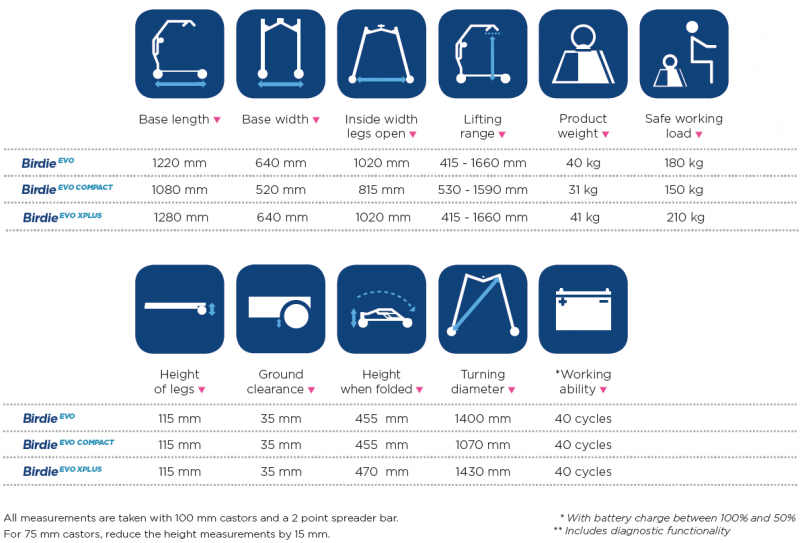

Specifications
Birdie Eco
Lifting Range 415-1660mm
Safe Working Load 180kg
Turning Diameter 1400mm
Weight 40kg
Base Length 1220mm
Base Width 640mm
Height of Legs 115mm
Height When Folded 455mm
Birdie Compact
Lifting Range 530-1590mm
Safe Working Load 150kg
Turning Diameter 1070mm
Weight 31kg
Base Length 1080mm
Base Width 520mm
Height of Legs 115mm
Height When Folded 455mm
Birdie XPlus
Lifting Range 415-1660mm
Safe Working Load 210kg
Turning Diameter 1430mm
Weight 41kg
Base Length 1220mm
Base Width 640mm
Height of Legs 115mm
Height When Folded 470mm
