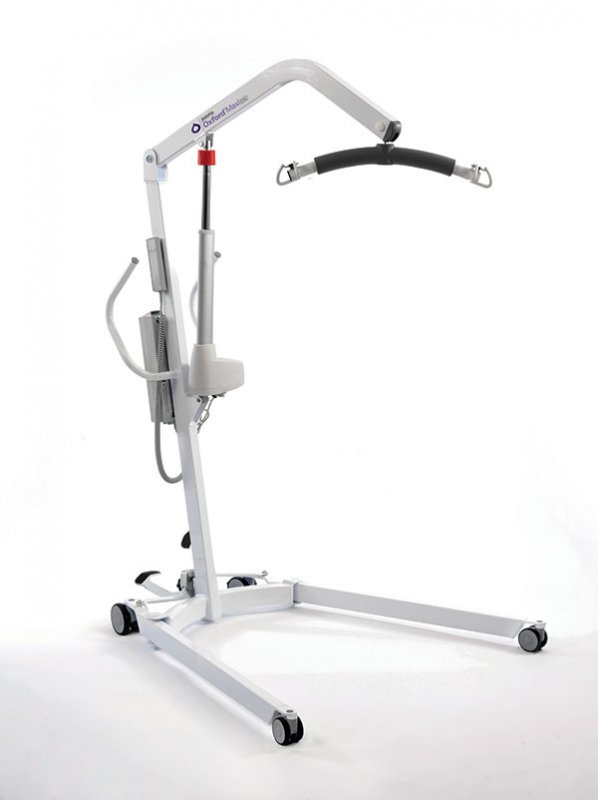

Oxford Maxi 180 Electric Hoist

Oxford Maxi 180 Electric Hoist

Read all reviews
£2,540.00 with VAT relief
£3,048.00 Including VAT
  • Model


The Oxford Maxi is a true heavyweight contender with a maximum lift height from the floor of almost 2m (6.2')

The Maxi can lift patients onto almost all institutional and nursing surfaces.

Remarkable, the Maxi maintains a relatively compact frame (no larger than the Major in width and length) allowing the hoist to be manoeuvred and stored with ease.

Heavy duty weight capacity

Detachable battery pack with desk top charger

Emergency lift and lower function

LCD battery level indicator

Safe working load 170kg (26st)

Max overall length 1.315mm (51")

Min overall length 1.315mm (51")

Max overall height 2.117mm (83")

Min overall height 1.560mm (61")

Max spreader bar height 1.965mm (77")

Min spreader bar height 755mm (29 3/4")

Spreader bar height at max reach 1.351mm (53")

Spreader bar reach at max height 512mm (20")

Spreader bar reach at min height 533mm (21")

Max reach 724mm (28")

Turning radius 1.274 (50")

Legs open- external width 1.140mm (44")

Legs open-internal width 1.130mm (45")

Legs closed-external width 610mm (24")

Legs closed internal width 540mm (21")

Overall height of legs 100mm (4")

Ground clearance 12.7mm (4 3/4")

Six point spreader bar

Please order slings separately
