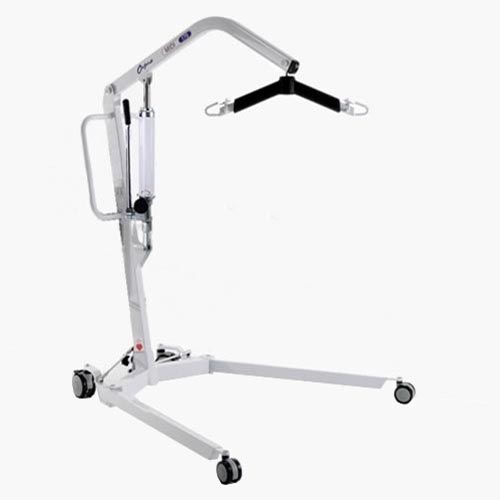

The Oxford Midi has become the versatile industry standard in home care, offering surprising performance for a hoist of its size. The Oxford Midi offers the perfect solution for the community / nursing environment, whilst being sympathetic to its space constraints it encounters. Also available in a electric version
Easy push, low profile castors provide clearance under most furniture and over a variety of surfaces.
The boom is angled to assist with lifting from the floor.
A large push handle helps steer the hoist with ease.
Weight 32kg (70lb)
Max Overall Length 1180mm (46")
Min Overall Length 1180mm (46")
Max Spreader Bar Height 1630mm (64")
Min Spreader Bar Height 495mm (19")
Spreader Bar Height At Max Reach 1070mm (42")
Max Reach 656mm (25")
Turning Radius 1174mm (46")
Legs Open Extrnal Width 1175mm (46")
Legs Open Internal Width 1120mm (44")
Legs Closed External Width 600mm (23")
Legs Closed Internal Width 540mm (21")
Overall Height Of Legs 100mm (4")
Six point spreader bar
Max weight capacity 170kg (27st)
Please order slings separately
